Roll Up Doors (installed on closed walls only)

Sizes: 6×7, 8×7, 8×8, 9×8, 10×8, 10×10, 12×12, *14×14
*Special Order & Lifted Needed for 14×14 RUD (chain hoist door)
– RUD on sidewall
– Colored RUD

• All roll up doors (RUD) are white (extra charge for colored doors).
• Roll up doors can only be installed in closed walls only.
• First number is width, second number is height. Example: 9’x8′ is 9′ wide and 8′ tall.
• When installing roll up door on a sidewall a header is required increasing the price of the roll up door.
• When installing roll up doors on size, legs need to be 1′ taller, on 14’x14′ legs need to be 2′ higher.
• On Regular style ends, roll up doors requires legs to be at least as tall as door.
• On A-Frame style ends, roll up doors require legs to be at least 1′ taller than door.
• Roll up doors hang down 4-6 inches.
• There should be 2′-3′ clearance from sidewall & where the starting point of RUD will be.
• When installing a RUD on a sidewall, please specify on sketch the distance that RUD will be placed from front end wall & back end wall.

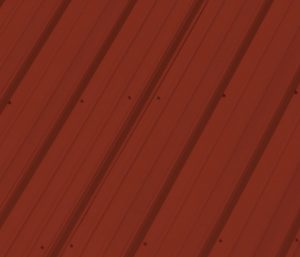

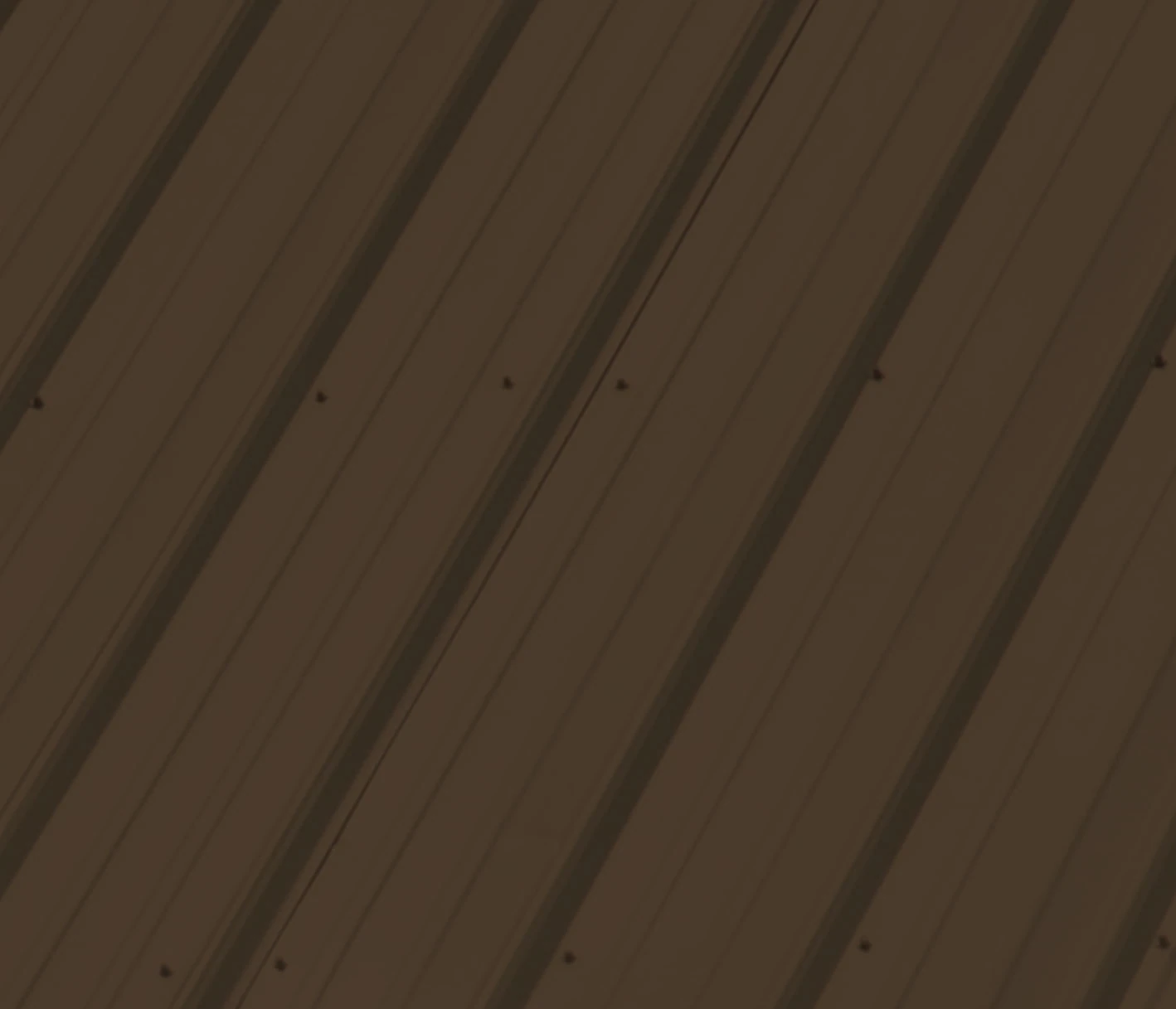

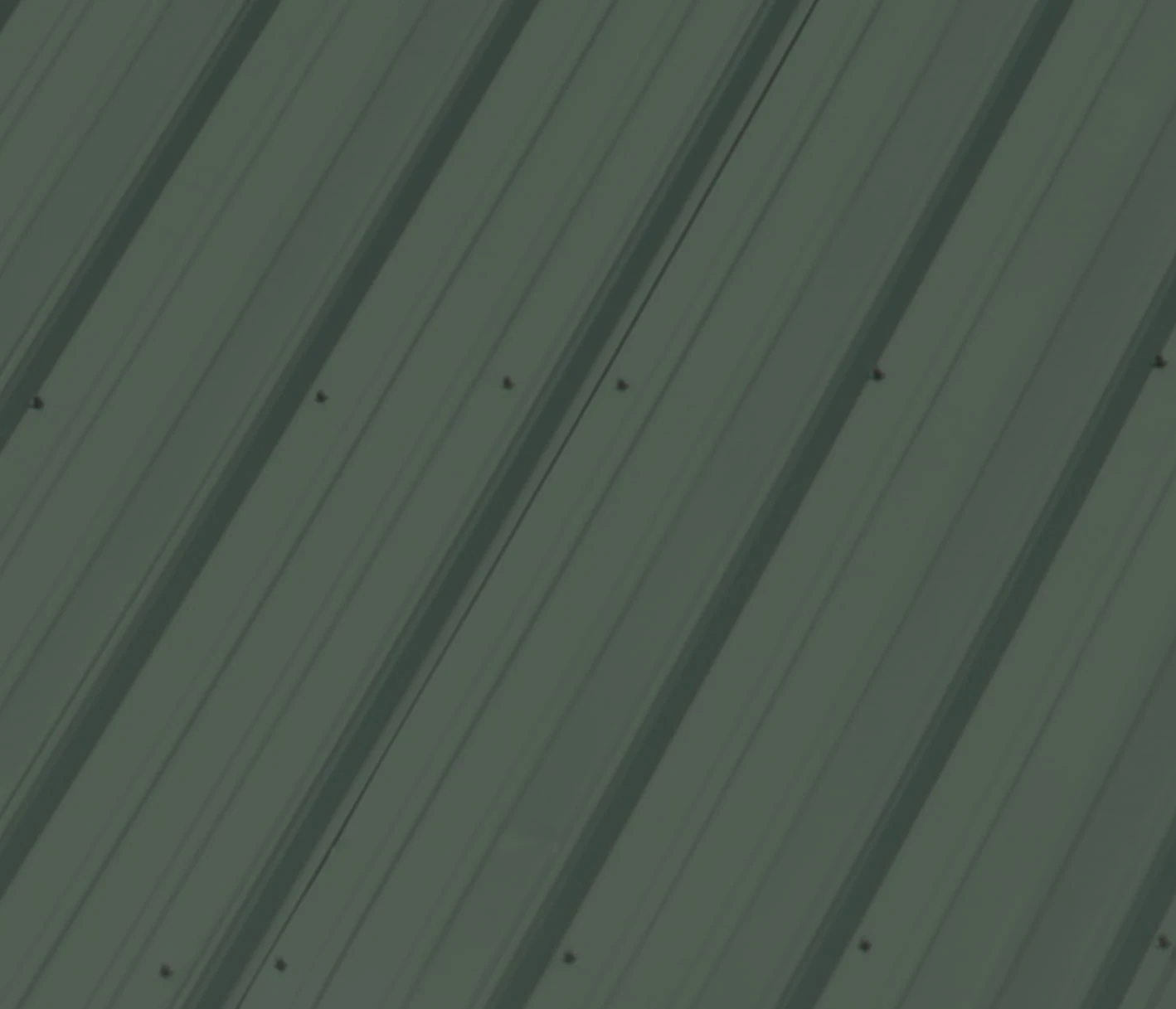

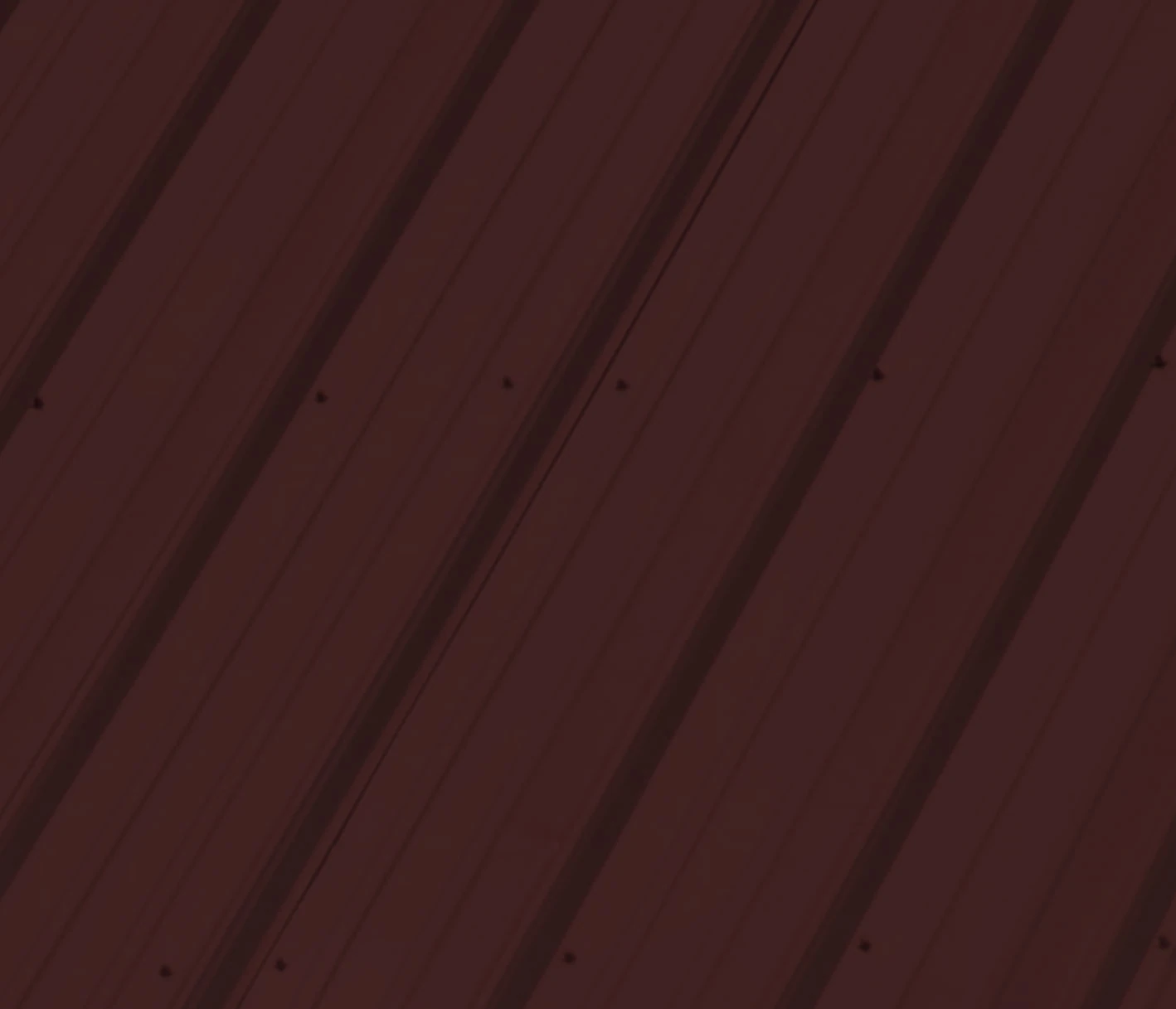

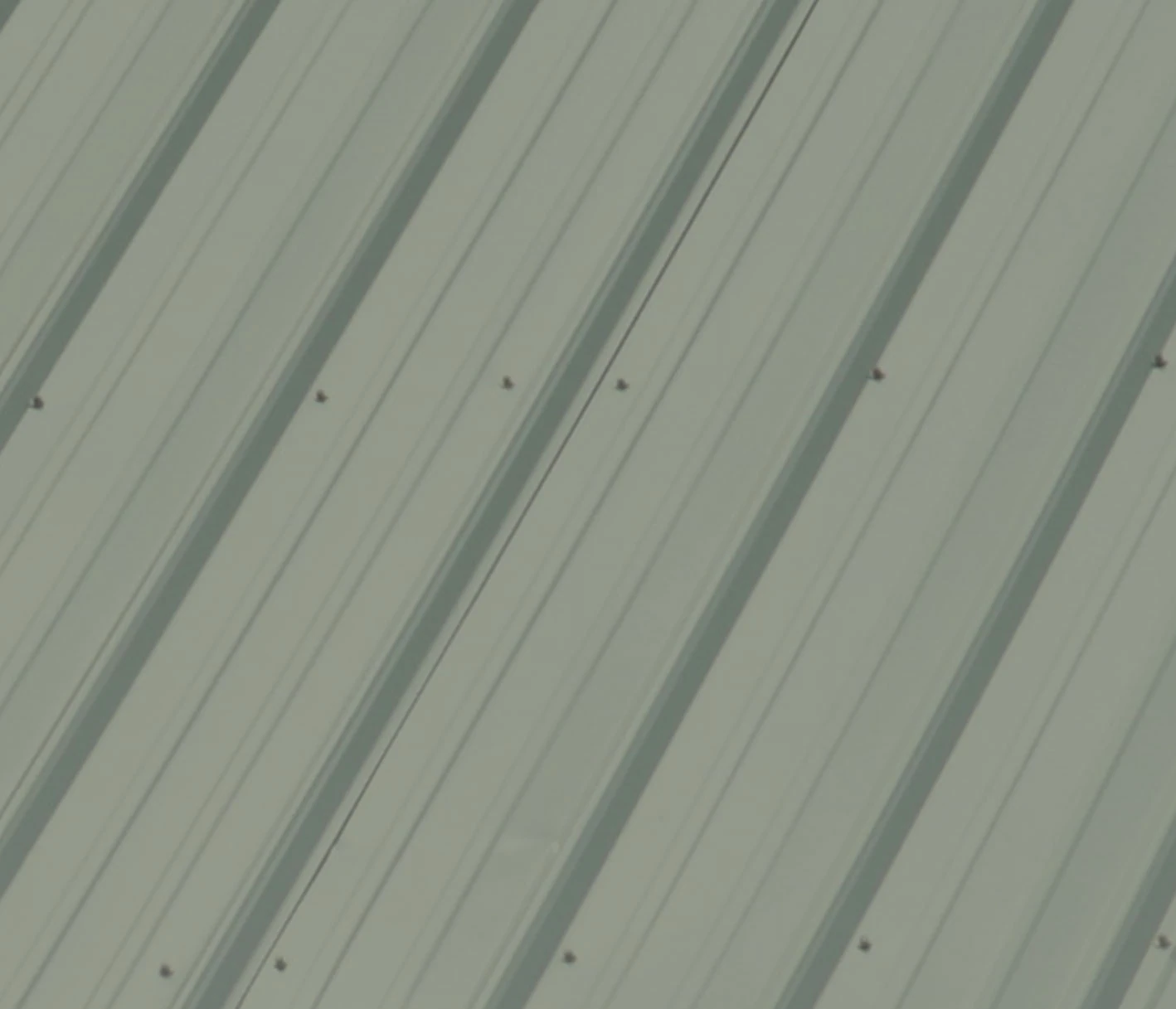

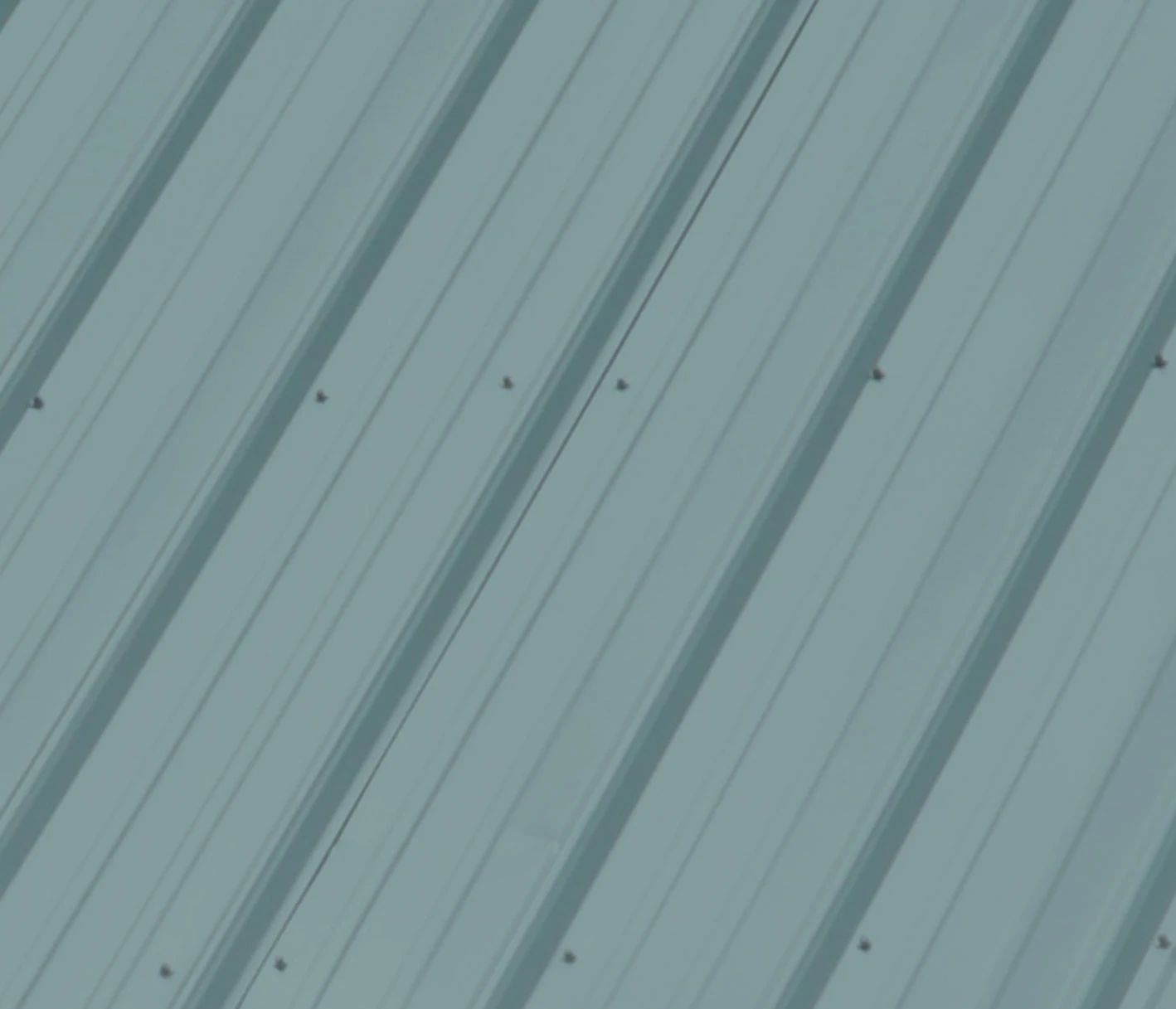

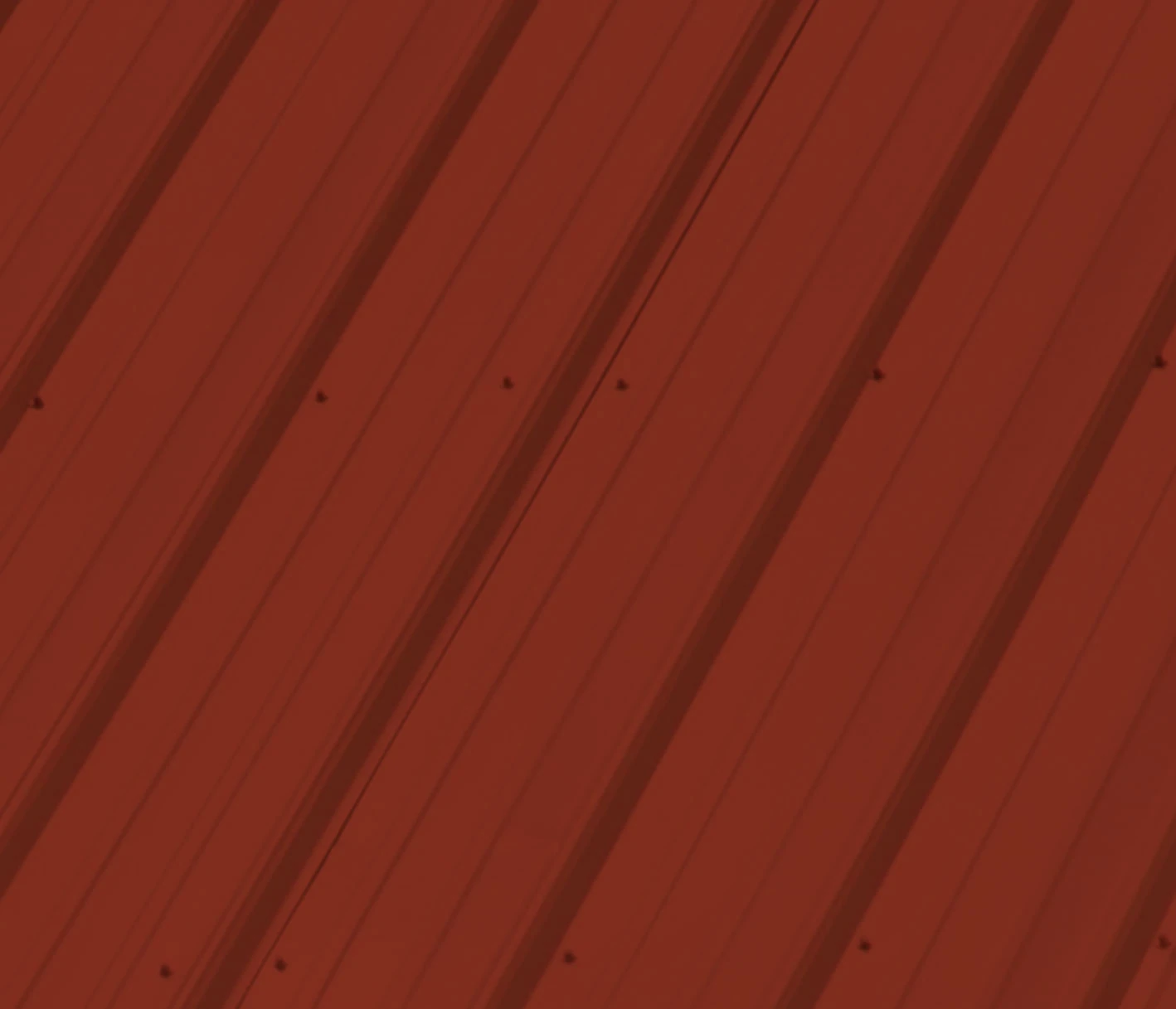

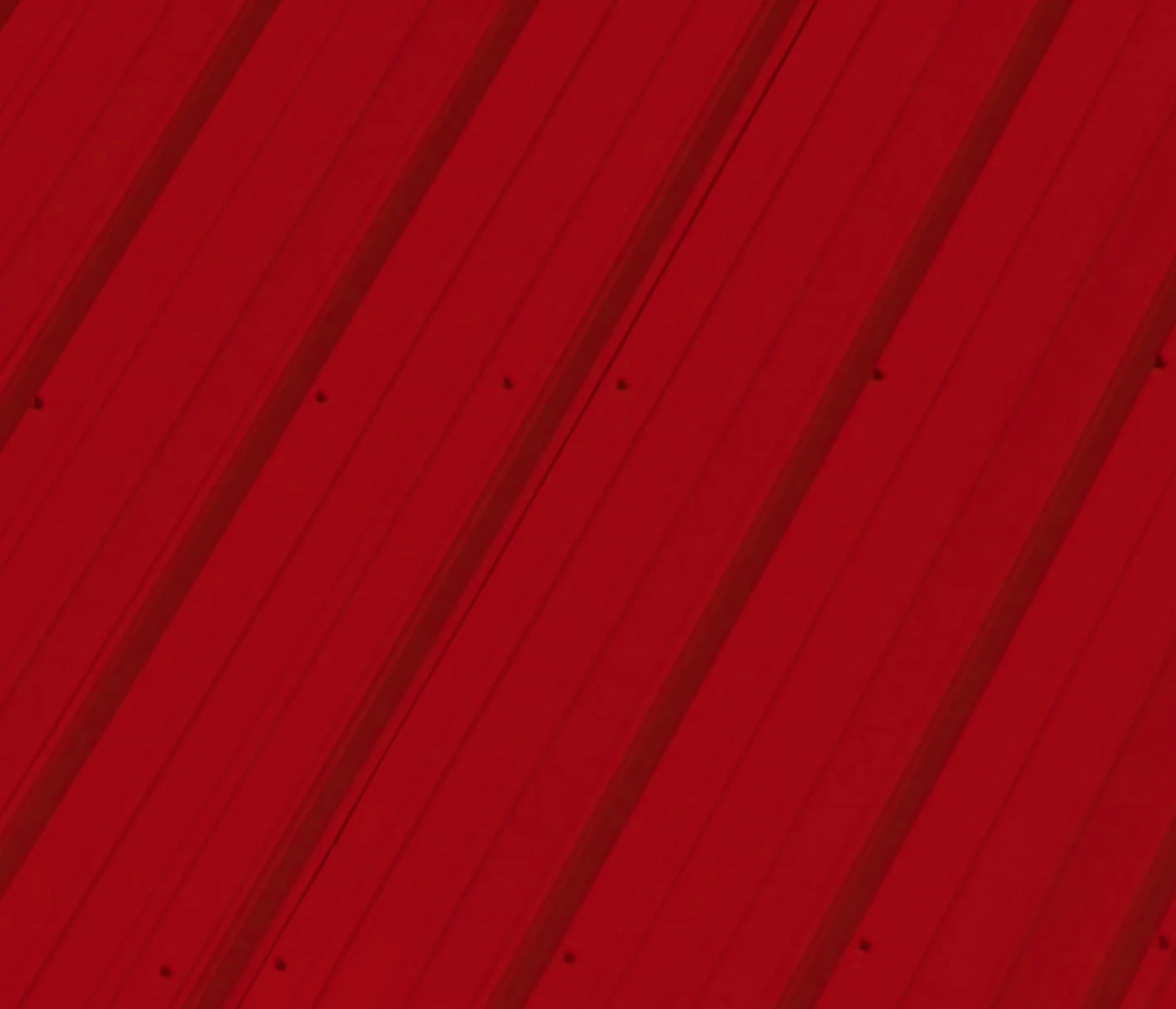

Click to View Available Colored Roll Up Doors
(Special Order can take up to 3 weeks) Metal panel colors & colored doors are not guaranteed to be identical

Custom Framed Openings

*Must close end or side first

• Walk in door opening
• Window Opening
• Opening on an end (up to 10′ wide)
• Opening on an end (10’1′ & up)
• Opening on a sidewall (up to 13′ wide)
• Opening on sidewall (13′-1’16’ wide)
• 45 degree Trim Kit $___ per opening

Extra Sheet Metal Panels (3′ High)

• 20′ Long – Horizontal Panel per side – add J-Trim**
• 25′ Long – Horizontal Panel per side – add J-Trim**
• 30′ Long – Horizontal Panel per side – add J-Trim**
• 35′ Long – Horizontal Panel per side – add J-Trim**
• *40′ Long – Horizontal Panel per side – add J-Trim**
• *45′ Long – Horizontal Panel per side – add J-Trim**
• *50′ Long – Horizontal Panel per side – add J-Trim**

*Not Continous Panel

**Price Covers both sides

Gables on End

• 12′-24′ Wide – Vertical & Horizontal per end
• 26′-30′ Wide – Vertical & Horizontal per end

Extended Gables (Gable & 3′ of sheet panel)

• 12′-24′ Wide – Vertical & Horizontal per end
• 26′-30′ Wide – Vertical & Horizontal per end

Anchors (installed)

• Mobile Home
• Concrete
• Rock/Asphalt

Walk In Door (Right Outswing)

• 36″x80″ Vinyl walk in Door
• 36″x80″ 9-Lite Vinyl Door
• 36″80″ Metal Door

Windows

• 30″x30″ Aluminum Windows
• 3’x4′ White Vinyl Windows

Headers

(Charged when cutting legs on sidewalls with no metal for a framed opening)

On Sketch specify if customer wants leg posts for opening to be Welded Legs or 1′ spaced (call us if you have any questions)

$_____ x Length when opening is max 15′ Long

$_____ x Length when opening is 16′-22′ Long

• Covered Header (covers header with panel) – Same Price as the 3′ High panel at length
• Trimmed Leg Posts: $____ each opening (on welded leg posts only)

Wainscoting on Sides & Ends

• Free on Horizontal Walls
• Vertical Walls:
  $__ per linear Ft. x Perimeter of Unit

Example: Unit if 26×30
(26’+26’+30’+30’x $___ = $____)

Additional Options

• 14″x24″ White End Vent
• 1′ Roof Overhang $___ Linear Ft.
• 3’x4′ Clear Panels (only on vertical walls)
• 4′ High Plywood Kickwall, Price = $__ x Length needed
• Colored Screws
  Roof (base price) – add 5%
  Sides/Ends – add 5%
• Connection Fee on End (per end)
  12′-22′ Wide: $____
  24′-30′ Wide: $____
• Cutting Legs on Site
  20′ Long $__, 25′ Long $__, 30′ Long $__, 35′ Long $__, 40′ Long $__, 45′ Long $__, 50′ Long $__
• Side Connection Fees (per side)
  20′ Long $__, 25′ Long $__, 30′ Long $__, 35′ Long $__, 40′ Long $__, 45′ Long $__, 50′ Long $__
• 12 Gauge Tubing
  Walls: Perimeter x Height x $__
  Roof: Width x Lenght x $__
• 26 Guage Metal
  Walls: Perimeter x Height x $__
  Roof: Width x Length x $__

EXTRA FEES

• Build Over Fee: $___ up to 40′ long
• After 40′ $___ every 5 feet
• Custom Width Fee $____

Special Order Items

• Insulation (only for vertical roof and/or vertical walls)
  Roof: Width x Length x $___
  Walls: Perimeter x Height x $___

Additions on Existing Carport

This will require a return trip fee plus the item addition fees. When adding Doors/Windows/RUD’s, you will be charged for a framed opening when existing walls are closed.
No additions for any building over 2 years.

• Closing Sides
• Closing Ends
• Adding Windows
• Roll up Doors
• Walk in Doors
• Not available: Lean-tos or extending length
